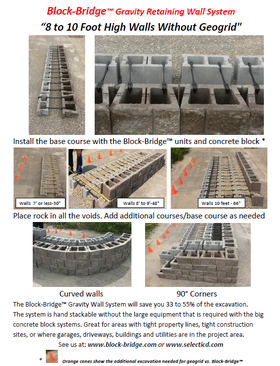

1 - lay out your corner.
2 - Add concrete block.
3 - Add structure with block-bridges and concrete block.
4 - add the next layer of face block concrete and block-bridges.
5 - add next layer of the structure.
6 - fourth layer is cross bonded.

7 - back of the structure.
8 - corner ready for additional courses.

View full slideshow

1 - lay out the curved portion with block-bridges to the concrete block.
2 - See the side view of the base course of the curve.
3 - Put on the second course of face block.
4 - follow with the block-bridge and concrete block.
5 - the curve takes shape.
6 - Continue by adding the third course of face course bridges and concrete block.
7 - The Wall Curve.
8 - Close up of the curve shows the structure.
9 - Additional courses as needed.

view full slideshow

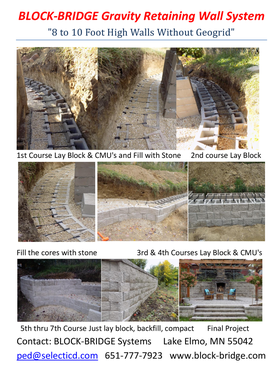

1 - level the retaining wall block.
2 - add the concrete block.
3 - attach the block-bridge components.
4 - fill all voids with rock, wall to 7 feet.
5 - add one additional concrete unit for walls 8-9 feet.
6 - add fourth unit for walls to 10 feet.
7 - start stacking for desired height and soil conditions. fill all voids with rock.

8 - for walls up to 7 feet stand and fill additional courses based on wall height.
9 - Walls 8 to 10 feet stack and fill each level.
10 - continue stacking courses for the desired height.
​11 - block-bridge units fill and compact each layer up the wall.
12 - stack and fill to desired height.

view full Slideshow

1 - level the retaining wall block.
2 - add the concrete block.
3 - attach the block-bridge components.
4 - fill all voids with rock, wall to 7 feet.
5 - add one additional concrete unit for walls 8-9 feet.
6 - add fourth unit for walls to 10 feet.
7 - start stacking for desired height and soil conditions. fill all voids with rock.

8 foot, 27 degree soil
8 foot, 32 degree soil
8 foot, 36 degree soil

9 FOOT, 27 DEGREE SOIL

4 foot, 27 degree soil
4 foot, 32 degree soil
4 foot, 36 degree soil

5 FOOT, 27 DEGREE SOIL
